Kubernetes Nodepool Driver Tech-Preview

Note

The Kubernetes Driver is a tech-preview whose implementation is still under review upstream.

This article demonstrates how to use Kubernetes as a Nodepool resource provider.

Setup kube/config

The driver requires cluster admin access to a Kubernetes service. For example, on Openshift the cluster admin can be created using these commands:

oc login -u system:admin
oc create sa nodepool-k8s
oc adm policy add-cluster-role-to-user cluster-admin --serviceaccount=nodepool-k8s
oc policy add-role-to-user admin --serviceaccount=nodepool-k8s
oc sa get-token nodepool-k8s

Then the cluster admin user needs to be configured for the nodepool service:

sudo -u nodepool oc login CLUSTER_URL --token SA_TOKEN

Alternatively, the new provider could be configured in /etc/software-factory/sfconfig.yaml nodepool provider section. In this case, the sfconfig playbook would install the token to the nodepool .kube/config automatically.

Once the token is installed, use this command to get the context name:

sudo -u nodepool oc config get-contexts
CURRENT   NAME               CLUSTER                     AUTHINFO  NAMESPACE
*         ...:nodepool-k8s   managesf-sftests-com:8443   ...       myproject

Setup provider

Add this nodepool configuration file:

# /root/config/nodepool/k8s.yaml
---
labels:
  - name: linter-pod
    min-ready: 1

providers:
  - name: my-k8s
    driver: kubernetes
    context: CONTEXT_NAME
    pools:
      - name: nodepool
        labels:
          - name: linter-pod
            type: pod
            image: docker.io/fedora:29

Merge this file, wait for the config-update job and check the nodepool launcher.log for any issues. If there are no exceptions, then Nodepool has automatically created a new namespace and a pod:

nodepool list
+------------+----------+------------+---------------------+-------+-------------+--------+
| ID         | Provider | Label      | Server ID           | State | Age         | Locked |
+------------+----------+------------+---------------------+-------+-------------+--------+
| 0000000000 | my-k8s   | linter-pod | nodepool-0000000000 | ready | 00:00:00:05 | locked |
+------------+----------+------------+---------------------+-------+-------------+--------+

sudo -u nodepool oc --namespace=nodepool-0000000000 get pods
NAME         READY     STATUS    RESTARTS   AGE
linter-pod   1/1       Running   0          1m

After a job used that namespace, Nodepool automatically destroys it and re-creates one.

Setup job

Kubernetes pod doesn't work with synchronize task. Jobs that use a Kubernetes pod based nodeset need a a special parent job to push the test project source on the pod (in SF, the job is already configured and it is named: base-openshift-pod):

# demo-project/.zuul.yaml
---
- job:
    name: linter-job
    parent: base-openshift-pod
    nodeset:
      nodes:
        - name: pod
          label: linter-pod
    run: pod.yaml

Here is the linter test playbook:

# demo-project/pod.yaml
---
- hosts: pod
  tasks:
    - command: ls -la
      args:
        chdir: "{{ zuul.project.src_dir }}"

    - command: python3 demo.py
      args:
        chdir: "{{ zuul.project.src_dir }}"

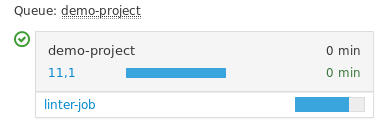

Here is the running job status:

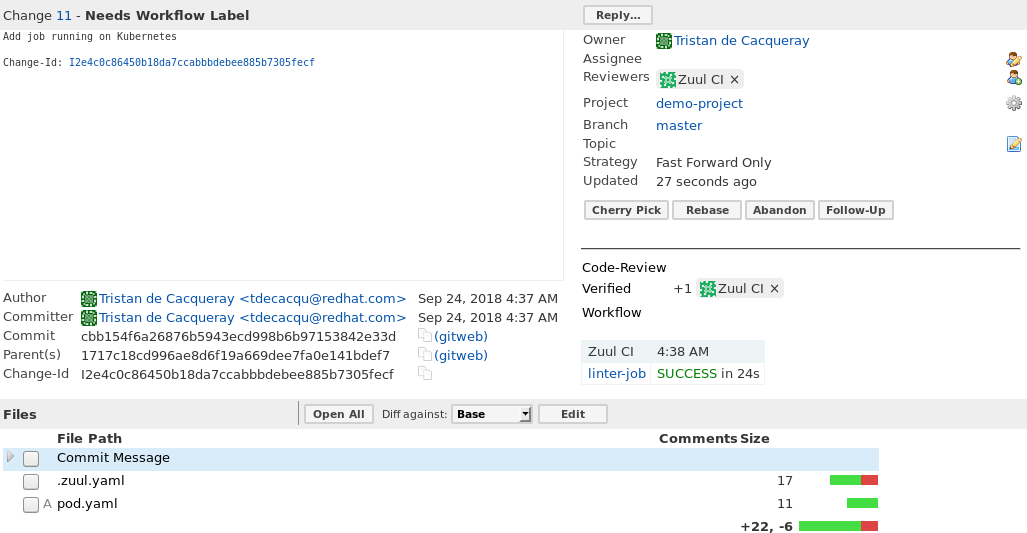

Here is the job review:

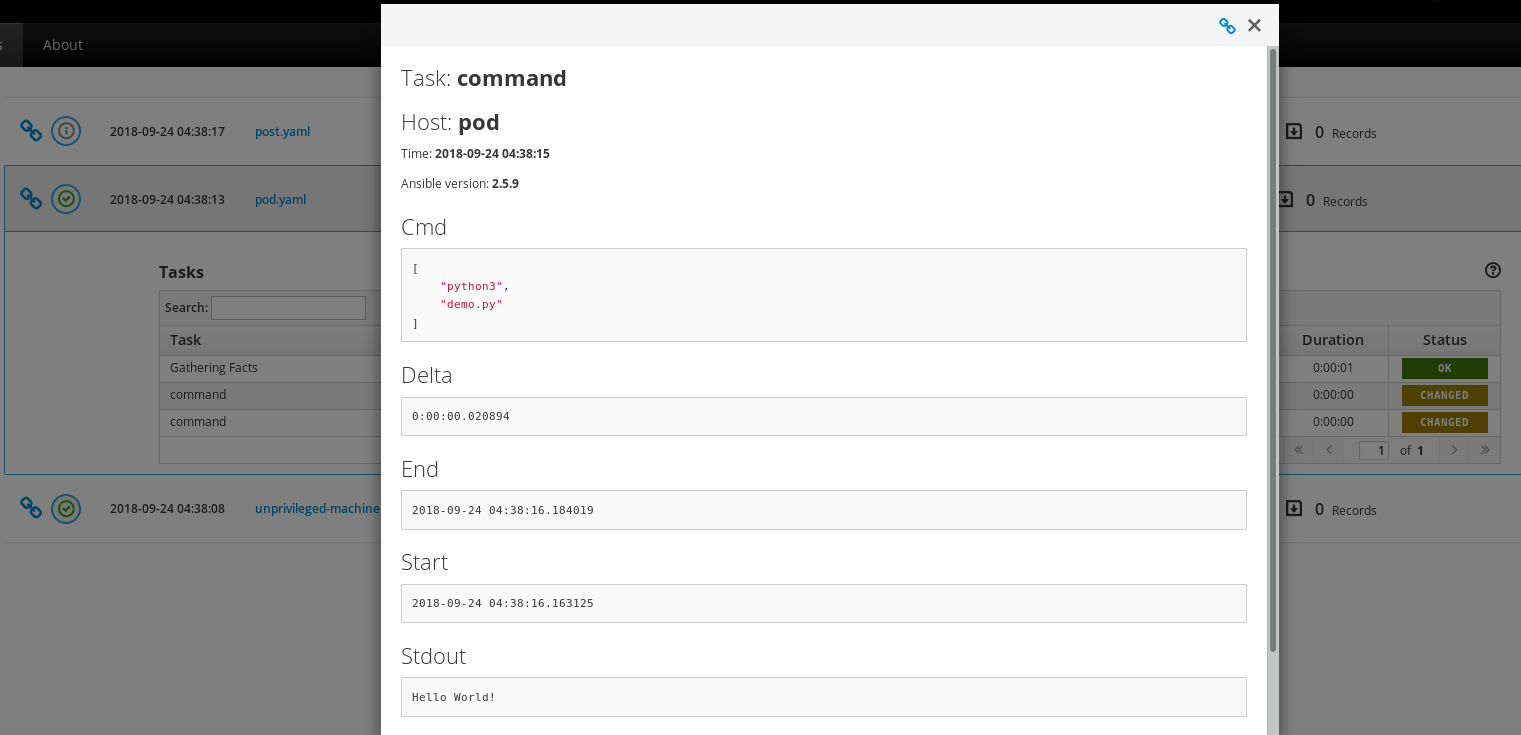

And here is the job result:

Note

Kubectl task execution output is not reported in the console-output because the zuul_stream callback requires a direct TCP connection to the test instance. However, the task output is available in the A.R.A. report.
