This article demonstrates how Zuul can be used to run integration tests on OpenShift. It presents a couple of jobs to test Operator and CRD templates as well as regular application deployment on OpenShift. Note that this is different from the Nodepool OpenShift driver as these jobs use a local OpenShift cluster.

Base Job and Roles

First, I wrote a job to install the requirements. It uses an origin_version variable to test different versions of OpenShift:

# zuul.d/openshift-job.yaml
---
- job:
    name: openshift-integration
    description: |
      An abstract that installs requirements and pulls origin images.
    pre-run: playbooks/openshift/requirements.yaml
    abstract: yes
    nodeset:
      nodes:
        - name: controller
          label: centos-7
    vars:
      origin_repo: centos-release-openshift-origin310
      origin_version: v3.10

Here is the requirements.yaml pre-run playbook:

# playbooks/openshift/requirements.yaml
---
- hosts: controller
  become: yes
  tasks:
    - name: Install origin repository
      yum:
        name: "{{ origin_repo }}"

    - name: Install requirements
      yum:
        name: "{{ item }}"
      with_items:
        - origin
        - docker
        - make
        - maven

    - name: Fix docker start options
      lineinfile:
        dest: /etc/sysconfig/docker
        regexp: "^OPTIONS="
        line: "OPTIONS='--selinux-enabled --log-driver=journald --signature-verification=false --insecure-registry 172.30.0.0/16'"

    # See: https://github.com/openshift/origin/issues/15038
    - name: Fix rhel secret issue
      file:
        path: /usr/share/rhel/secrets
        state: absent

    - name: Start docker service
      service:
        name: docker
        state: started

    - name: Pull origin images
      command: "docker pull docker.io/openshift/{{ item }}:{{ origin_version }}"
      with_items:
        - origin-web-console
        - origin-docker-registry
        - origin-haproxy-router
        - origin-deployer
        - origin-sti-builder
        - origin-pod
        - origin

Here are the default deploy-openshift role's tasks:

# roles/openshift-deploy/tasks/main.yaml
---
- name: Deploy local openshift cluster
  command: oc cluster up --insecure-skip-tls-verify=true
  become: yes

- name: Create zuul user .kube directory
  file:
    path: "{{ ansible_env.HOME }}/.kube"
    state: directory

- name: Setup zuul user kube config
  copy:
    src: /root/.kube/config
    dest: "{{ ansible_env.HOME }}/.kube/config"
    owner: "{{ ansible_env.USER }}"
    mode: 0600
    remote_src: yes
  become: yes

- name: Login as system:admin
  command: oc login -u system:admin

- name: Who am i
  command: oc whoami -c

Using this job and role, it is relatively simple to do integration tests with OpenShift.

Radanalytics Operator and Tutorial Integration Tests

Radanalytics provides Operators and Tutorial application. In this example, I wanted to test the spark operator and the tutorial-sparkpi-java-vertx.

OpenShift Operator Integration test

I wrote a first job to build, deploy and test the operator standalone:

# zuul.d/openshift-job.yaml
---
- job:
    name: openshift-integration-operator
    parent: openshift-integration
    run: playbooks/openshift/operator.yaml
    description: |
      A job that builds and deploys an operator
    # Commented as the project is not configured in zuul
    # required-projects:
    #   - radanalyticsio/spark-operator
    vars:
      operator_url: https://github.com/radanalyticsio/spark-operator/

- job:
    name: openshift39-integration-operator
    parent: openshift-integration-operator
    vars:
      origin_repo: centos-release-openshift-origin39
      origin_version: v3.9

Note that Zuul isn't configured for this project, so I wrote a shim to fetch the source code as if Zuul prepared the workspace. Here is the test playbook:

# playbooks/openshift/operator.yaml
---
- hosts: controller
  vars:
    operator_src: "{{ ansible_env.HOME }}/src/github.com/radanalyticsio/spark-operator"
  pre_tasks:
    # Shim to manually fetch operator
    - file:
        path: "{{ operator_src }}"
        state: directory
    - git:
        repo: "{{ operator_url }}"
        dest: "{{ operator_src }}"
        refspec: "{{ operator_ref | default(omit) }}"
        version: "{{ operator_version | default(omit) }}"
    # End of shim

    - import_role: name=operator-build
    - import_role: name=openshift-deploy
    - import_role: name=operator-deploy
  tasks:
    - name: Verify operator is deployed
      command: kubectl get pods

    - name: Run operator tests
      command: make test
      args:
        chdir: "{{ operator_src }}"

    - name: Deploy example cluster
      command: kubectl create -f examples/cluster.yaml
      args:
        chdir: "{{ operator_src }}"

    - name: Wait for example to be running
      command: oc get pods --field-selector=status.phase=Running   -o "jsonpath={.items[?(@.metadata.labels.radanalytics\.io/podType=='master')].metadata.name}"
      register: main_pod_name
      retries: 600
      delay: 1
      until: "'spark-cluster' in main_pod_name.stdout"

    - name: Get example cluster logs
      command: "oc logs {{ main_pod_name.stdout }}"

The first task of this job is to build the operator locally so that the job can test Pull Requests speculatively. Here are the operator-build and operator-deploy roles:

# roles/operator-build/tasks/main.yaml
---
- name: Build the operator
  command: make package
  args:
    chdir: "{{ operator_src }}"

- name: Build the operator image
  command: make image-build-slim
  become: yes
  args:
    chdir: "{{ operator_src }}"

- name: Tag image
  command: docker tag radanalyticsio/spark-operator:slim radanalyticsio/spark-operator:latest
  become: yes

# roles/operator-deploy/tasks/main.yaml
---
- name: Install the operator
  command: kubectl create -f manifest/operator.yaml
  args:
    chdir: "{{ operator_src }}"

- name: Wait for operator pod to be running
  command: oc get pods --field-selector=status.phase=Running -o "jsonpath={.items[?(@.metadata.labels.app\.kubernetes\.io/name=='spark-operator')].metadata.name}"
  register: operator_pod_name
  retries: 600
  delay: 1
  until: "'spark-operator' in operator_pod_name.stdout"

- name: Get operator logs
  command: "oc logs {{ operator_pod_name.stdout }}"

I wrote these generic tasks as roles so that they can be easily re-used by the tutorial integration job.

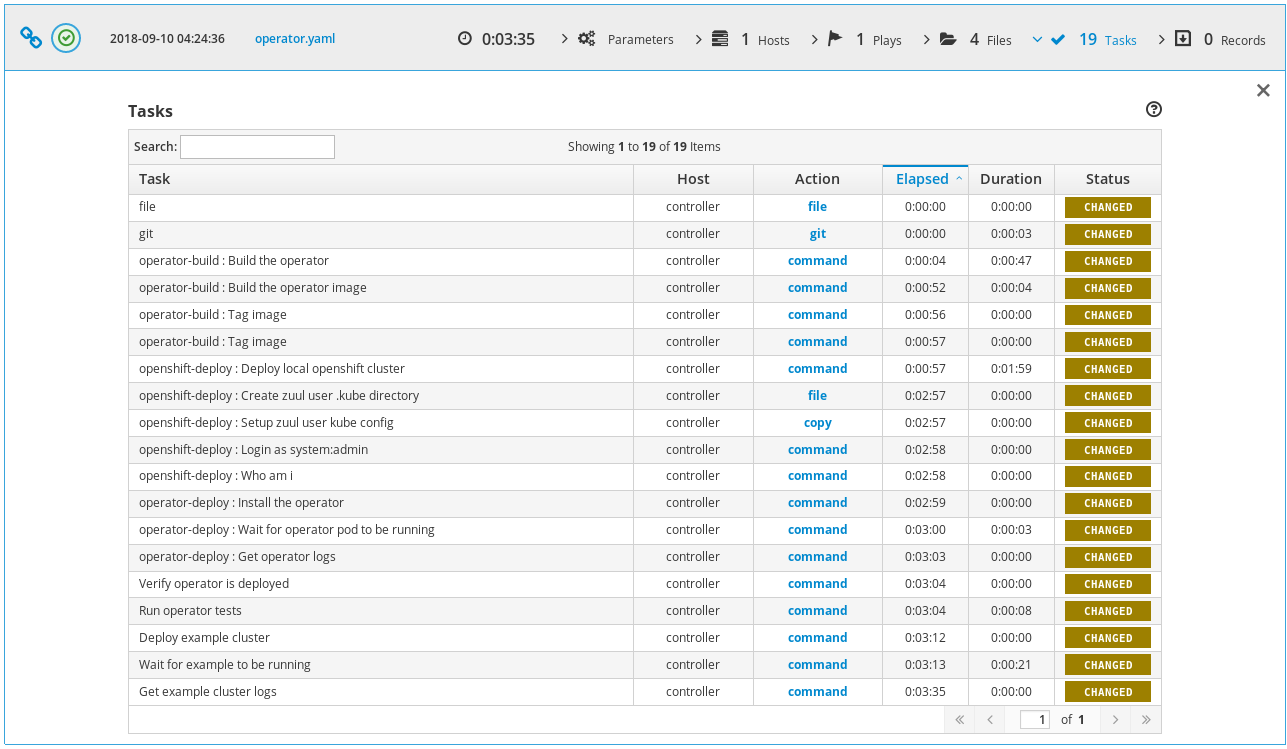

Here is the ARA report of the openshift-integration-operator job:

None

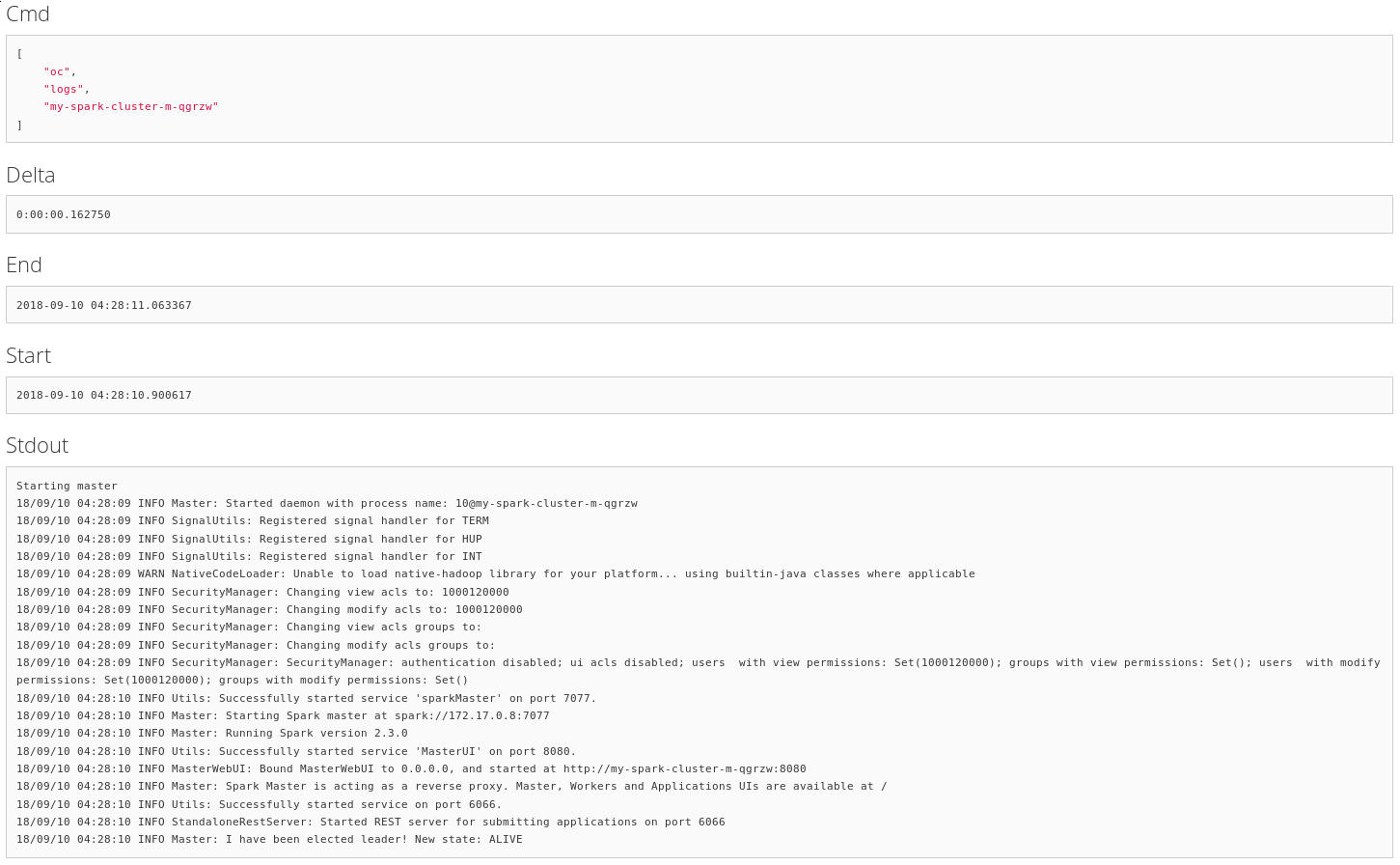

And here is the last task output that displays a deployed spark cluster's logs using the operator:

None

With that first job in place, it's simple to do integration testing with the other Radanalytics projects.

OpenShift Operator Application Integration test

The second job I wrote tests the tutorial-sparkpi-java-vertx demo application:

# zuul.d/openshift-job.yaml
---
- job:
    name: openshift-integration-operator-tutorial
    parent: openshift-integration
    run: playbooks/openshift/tutorial.yaml
    description: |
      A job that deploys an operator and tests the tutorial
    # Commented as the projects are not configured in zuul
    # required-projects:
    #   - radanalyticsio/spark-operator
    #   - radanalyticsio/tutorial-sparkpi-java-vertx
    vars:
      operator_url: https://github.com/radanalyticsio/spark-operator/
      tutorial_url: https://github.com/radanalyticsio/tutorial-sparkpi-java-vertx

Here are the test playbook pre-tasks:

# playbooks/openshift/tutorial.yaml
---
- hosts: controller
  vars:
    operator_src: "{{ ansible_env.HOME }}/src/github.com/radanalyticsio/spark-operator"
    tutorial_src: "{{ ansible_env.HOME }}/src/github.com/radanalyticsio/tutorial-sparkpi-java-vertx"
  pre_tasks:
    # Shim to manually fetch operator and tutorial
    - name: "Create operator source clone directory"
      file:
        path: "{{ operator_src }}"
        state: directory
    - name: "Clone operator"
      git:
        repo: "{{ operator_url }}"
        dest: "{{ operator_src }}"
        refspec: "{{ operator_ref | default(omit) }}"
        version: "{{ operator_version | default(omit) }}"
    - name: "Create tutorial source clone directory"
      file:
        path: "{{ tutorial_src }}"
        state: directory
    - name: "Clone tutorial"
      git:
        repo: "{{ tutorial_url }}"
        dest: "{{ tutorial_src }}"
        refspec: "{{ tutorial_ref | default(omit) }}"
        version: "{{ tutorial_version | default(omit) }}"
    - name: "Merge PR to master"
      command: "git {{ item }}"
      with_items:
        - show --raw
        - branch pr
        - checkout master
        - merge pr
        - show --raw
      args:
        chdir: "{{ tutorial_src }}"
      when: tutorial_version != "master"

    # End of shim

    - import_role: name=operator-build
    - import_role: name=openshift-deploy
    - import_role: name=operator-deploy

The challenge here is that the tutorial uses a BuildConfig to build an image of the tutorial code before deployment. To do speculative tests, we need to serve the source code locally. Here are the tutorial build tasks:

# Serve the tutorial from speculative git ref
- name: Bare clone the tutorial to serve build config
  command: "git clone --bare {{ tutorial_src }} /tmp/repo"

- name: Update git server info to enable dump http clone
  command: "git update-server-info"
  args:
    chdir: /tmp/repo

- name: Setup a fake git server service
  copy:
    content: |
      [Unit]
      Description=Git service
      After=syslog.target

      [Service]
      WorkingDirectory=/tmp/repo
      ExecStart=/usr/bin/env python -m SimpleHTTPServer 8000
    dest: /etc/systemd/system/gitserver.service
  become: yes

- name: Start service
  systemd:
    name: gitserver
    state: started
    daemon-reload: yes
  become: yes

- name: Deploy tutorial template
  command: >
    oc new-app --template oshinko-java-spark-build-dc
      -p APPLICATION_NAME=vertx-sparkpi
      -p GIT_URI="http://{{ ansible_default_ipv4.address }}:8000"
      -p APP_FILE=sparkpi-app-1.0-SNAPSHOT-vertx.jar
      -p SPARK_OPTIONS='--driver-java-options="-Dvertx.cacheDirBase=/tmp/vertx-cache"'

These tasks ensure that the application deployed is using the source prepared by Zuul. Next I wrote a few test tasks to verify that the application was working as expected. In this example, it makes sure the PI calculation is correct:

- name: Wait for build to complete
  command: oc get builds -o "jsonpath={.items[?(@.metadata.labels.buildconfig=='vertx-sparkpi')].status.phase}"
  register: _project_build
  retries: 600
  delay: 1
  until: "'Complete' in _project_build.stdout"

- name: Get build name
  command: oc get builds -o "jsonpath={.items[?(@.metadata.labels.buildconfig=='vertx-sparkpi')].metadata.name}"
  register: build_name

- name: Grab build logs
  command: "oc logs build/{{ build_name.stdout }}"

- name: Wait for project to be running
  command: oc get pods --field-selector=status.phase=Running  -o "jsonpath={.items[?(@.metadata.labels.app=='vertx-sparkpi')].metadata.name}"
  register: tutorial_pod_name
  retries: 600
  delay: 1
  until: "'vertx-sparkpi' in tutorial_pod_name.stdout"

- name: Grab pod logs
  command: "oc logs {{ tutorial_pod_name.stdout }}"

- name: Expose an external route
  command: oc expose svc/vertx-sparkpi

- name: Get route name
  command: oc get routes/vertx-sparkpi "--template={{'{{'}}.spec.host {{'}}'}}"
  register: spec_host

- name: Wait for service to be running
  uri:
    url: "http://{{ spec_host.stdout }}"
    return_content: yes
  register: webpage
  retries: 600
  delay: 1
  until: "'Java Vert.x SparkPi server running' in webpage.content"

- name: Get PI result
  uri:
    url: "http://{{ spec_host.stdout }}/sparkpi"
    return_content: yes
  register: pi

- name: Check PI is correct
  fail:
    msg: "Couldn't compute PI"
  when: not pi.content.startswith("Pi is rouuuughly 3.1")

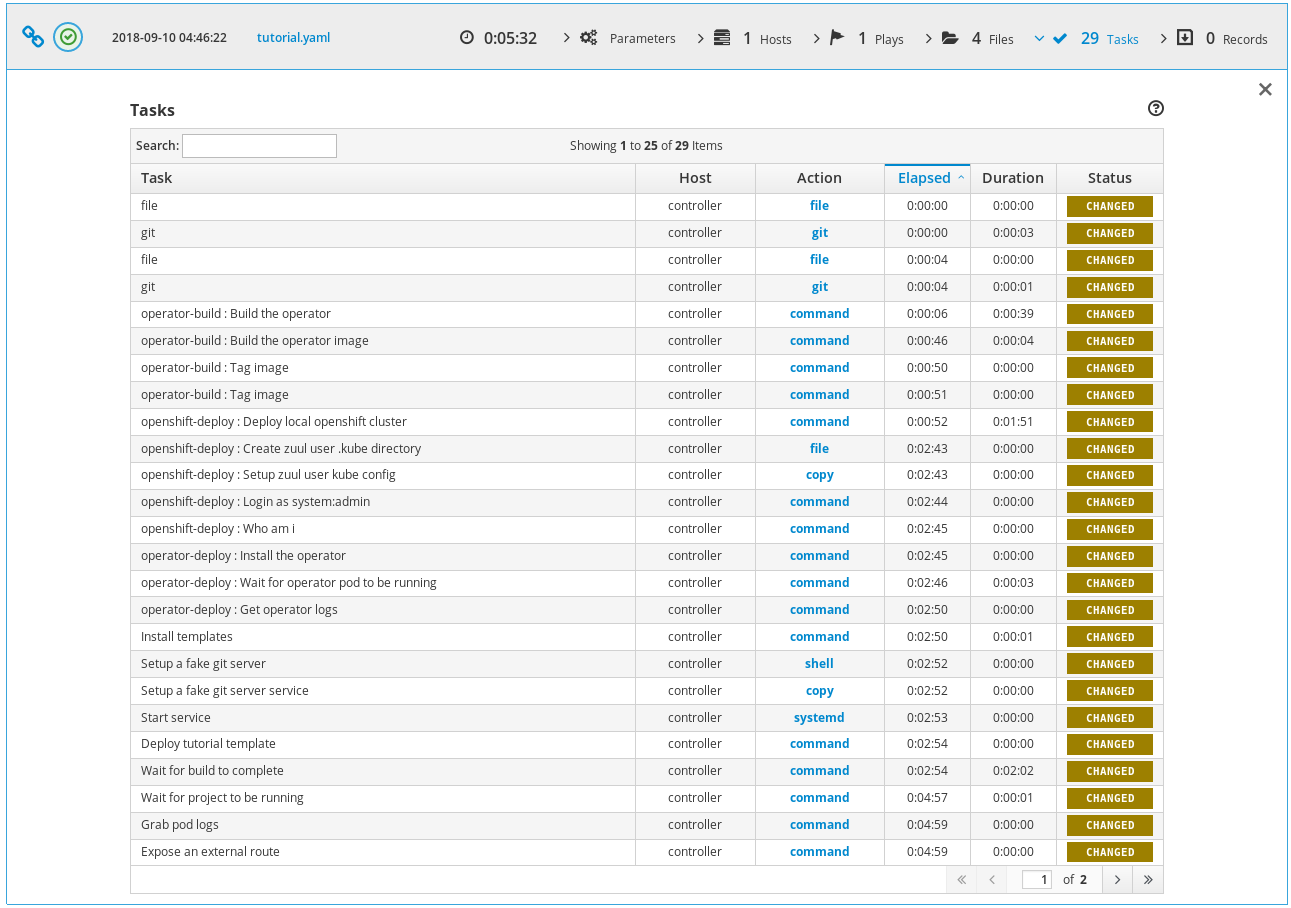

Here is the ARA report of the openshift-integration-operator-tutorial job:

None

Project Configuration

Using these two jobs, we can make sure operator changes don't break the tutorial, and that the tutorial changes are working as expected. More importantly, we can test cross dependency changes. For example, Zuul can validate that the tutorial works with a new operator feature Pull Request. Here is an example configuration:

# zuul.d/project-config.yaml
---
- project:
   name: radanalyticsio/spark-operator
   check:
     jobs:
       - openshift-integration-operator
       - openshift-integration-operator-tutorial
       - openshift39-integration-operator

- project:
   name: radanalyticsio/tutorial-sparkpi-java-vertx
   check:
     jobs:
       - openshift-integration-operator-tutorial

Because Zuul isn't actually configured for the radanalytics projects, I had to use shims to setup the sources, here is a demonstration that manually tests a Pull Request:

# zuul.d/project-config.yaml
---
- project:
   check:
     jobs:
       - openshift-integration-operator-tutorial:
           vars:
             tutorial_ref: 'refs/pull/8/head'
             tutorial_version: 'FETCH_HEAD'

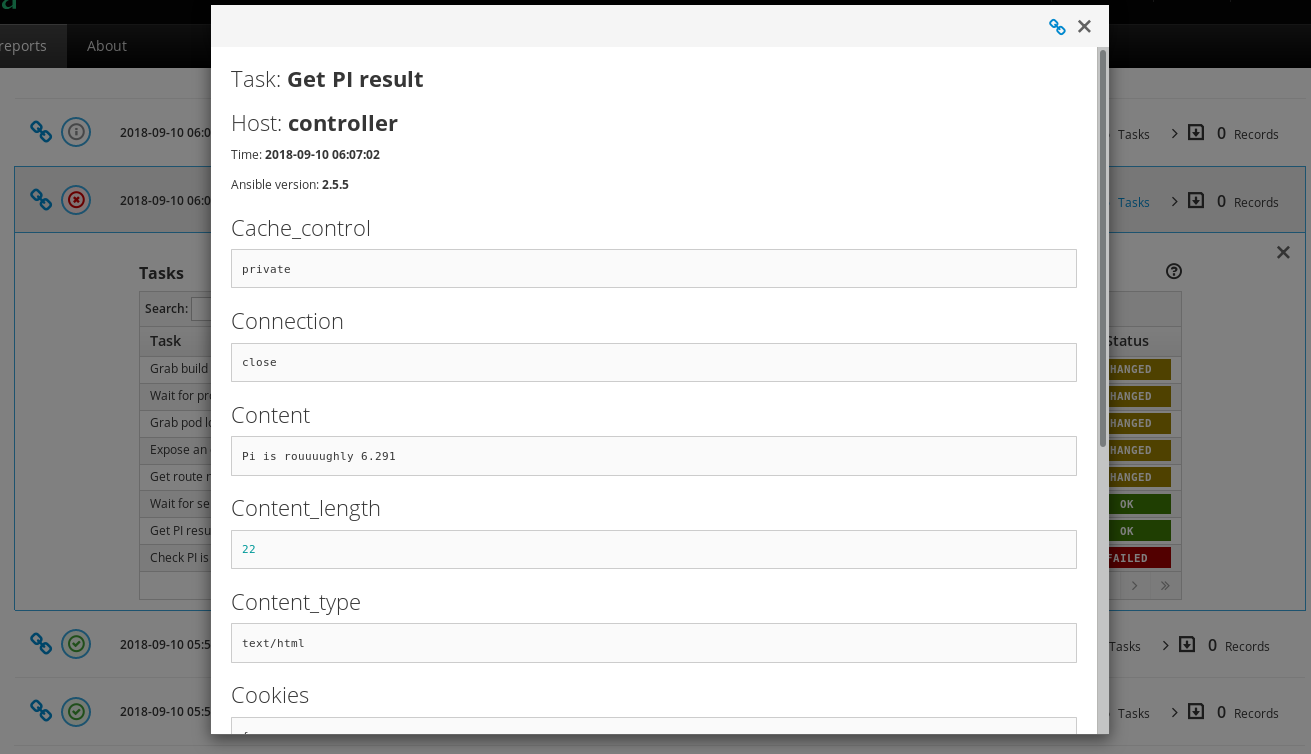

This Pull Request introduces an error in PI calculation by doubling the result, and the job failed as expected:

None

Ansible Tower deployment on OpenShift

Similar to the Radanalytics integration jobs, here is a job that tests Ansible Tower deployment on OpenShift:

# zuul.d/jobs.yaml
---
- job:
    name: openshift-awx-install
    parent: openshift-integration
    description: |
      A job that tests awx install on openshift
    run: playbooks/awx/install-openshift.yaml
    required-projects:
      - name: ansible/awx
        override-checkout: devel

Here are the test playbook pre-tasks:

# playbooks/awx/install-openshift.yaml
---
- hosts: controller
  vars:
    awx_src: "{{ ansible_env.HOME }}/src/github.com/ansible/awx"
  pre_tasks:
    - import_role: name=awx-build-image
    - import_role: name=openshift-deploy
    - import_role: name=awx-install-openshift

The challenge again is to use speculative images of Tower by the deployment playbook. Here are the awx-build-image and awx-install-openshift roles:

# roles/awx-build-image/tasks/main.yaml
---
- name: Build the image
  command: ansible-playbook -i inventory build.yml
  become: yes
  args:
    chdir: "{{ awx_src }}/installer"
  environment:
    # We need a more recent git to correctly discover awx_version
    # The default git doesn't support --first-parent argument
    PATH: "/opt/rh/rh-git29/root/bin/:{{ ansible_env.PATH }}"

# roles/awx-install-openshift/tasks/main.yaml
---
- name: Remove dockerhub_base variable
  lineinfile:
    path: "{{ awx_src }}/installer/inventory"
    regexp: '^dockerhub_base='
    line: '#dockerhub_base='

- name: Remove privileged command
  lineinfile:
    path: "{{ awx_src }}/installer/roles/kubernetes/tasks/openshift.yml"
    regexp: '.*adm policy.*'
    line: '    true'

# Fix: Failed to pull image "registry.access.redhat.com/rhscl/postgresql-96-rhel7"
- name: Fix postgres image location
  replace:
    path: "{{ awx_src }}/installer/roles/kubernetes/templates/postgresql-persistent.yml.j2"
    regexp: 'registry.access.redhat.com.rhscl.postgresql-96-rhel7'
    replace: 'centos/postgresql-96-centos7'

- name: Set privileged context
  command: >
    oc --context "default/127-0-0-1:8443/system:admin" \
      adm policy add-scc-to-user privileged system:serviceaccount:myproject:awx

- name: Login with developer account
  command: oc login -u developer -p developer

- name: Grab openshift token
  command: oc whoami -t
  register: openshift_token

- name: Install awx on openshift
  command: >
    ansible-playbook -i inventory \
      -e openshift_host=127.0.0.1:8443 \
      -e openshift_skip_tls_verify=True \
      -e openshift_user=developer \
      -e openshift_password=developer \
      -e openshift_project=myproject \
      -e kubernetes_task_image=172.30.1.1:5000/myproject/awx_task \
      -e kubernetes_web_image=172.30.1.1:5000/myproject/awx_web \
      -e openshift_pg_emptydir=yes \
      -e docker_registry=172.30.1.1:5000 \
      -e docker_registry_repository=myproject \
      -e docker_registry_username=developer \
      -e docker_registry_password={{ openshift_token.stdout }} \
      install.yml
  become: yes
  args:
    chdir: "{{ awx_src }}/installer"
  environment:
    # We need a more recent git to correctly discover awx_version
    # The default git doesn't support --first-parent argument
    PATH: "/opt/rh/rh-git29/root/bin/:{{ ansible_env.PATH }}"

These tasks ensure that the application deployed is using the source prepared by Zuul. Here are the rest of the openshift-awx-install test tasks:

- name: Verify pods are running
  command: oc status

- name: Get route name
  command: oc get routes/awx-web-svc "--template={{'{{'}}.spec.host {{'}}'}}"
  register: spec_host

- name: Check web is working
  uri:
    url: "http://{{ spec_host.stdout }}"
    return_content: yes
  register: webpage
  retries: 600
  delay: 1
  until: "'working...' in webpage.content"

- name: Install tower-cli
  command: pip install --user ansible-tower-cli

- name: Configure host
  command: "{{ ansible_env.HOME }}/.local/bin/tower-cli config host {{ spec_host.stdout }}"

- name: Login
  command: "{{ ansible_env.HOME }}/.local/bin/tower-cli login --password password admin"

- name: Display versions
  command: "{{ ansible_env.HOME }}/.local/bin/tower-cli version"

- name: Display roles
  command: "{{ ansible_env.HOME }}/.local/bin/tower-cli role list"

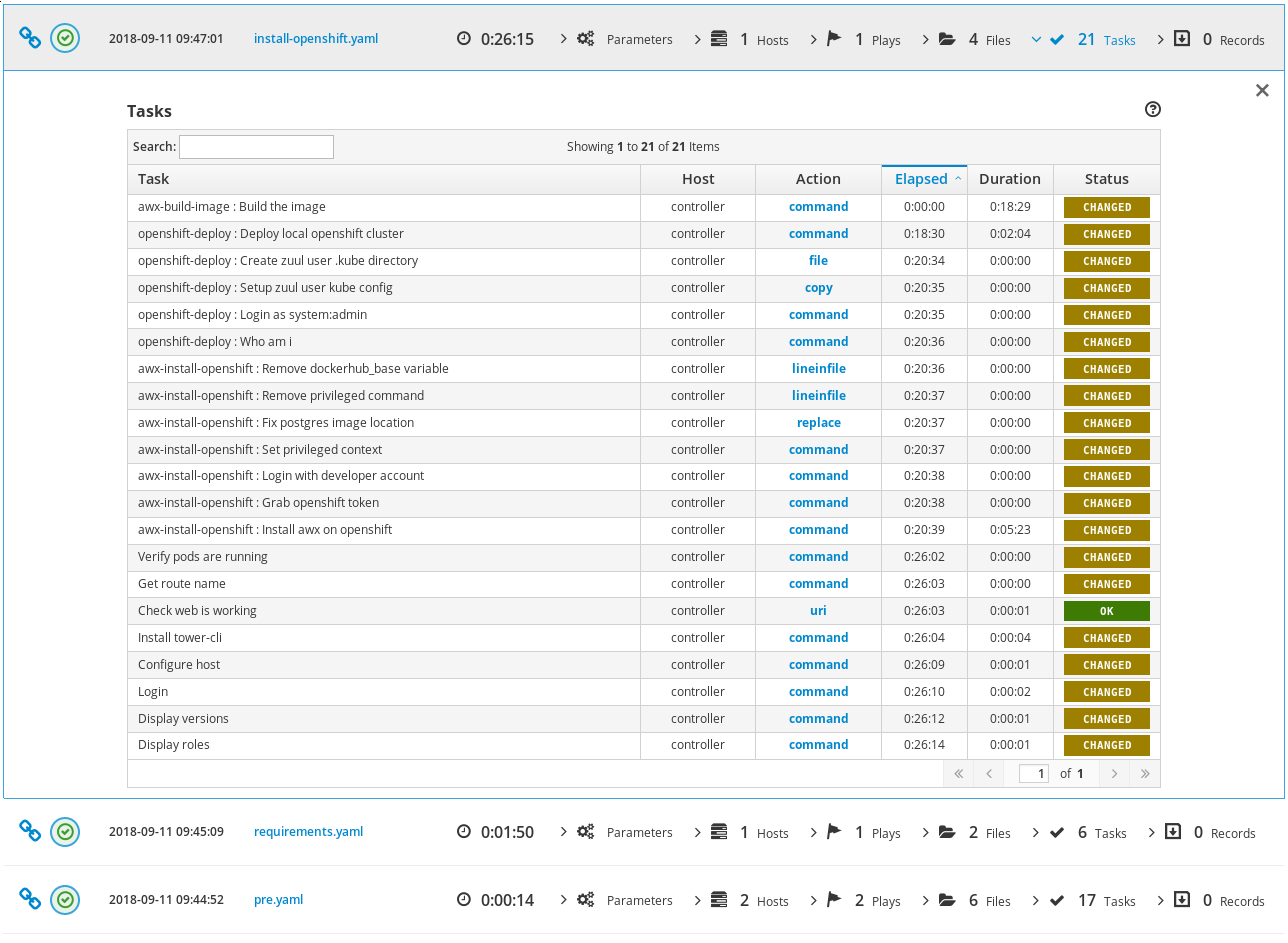

Here is the ARA report of the openshift-awx-install job:

None

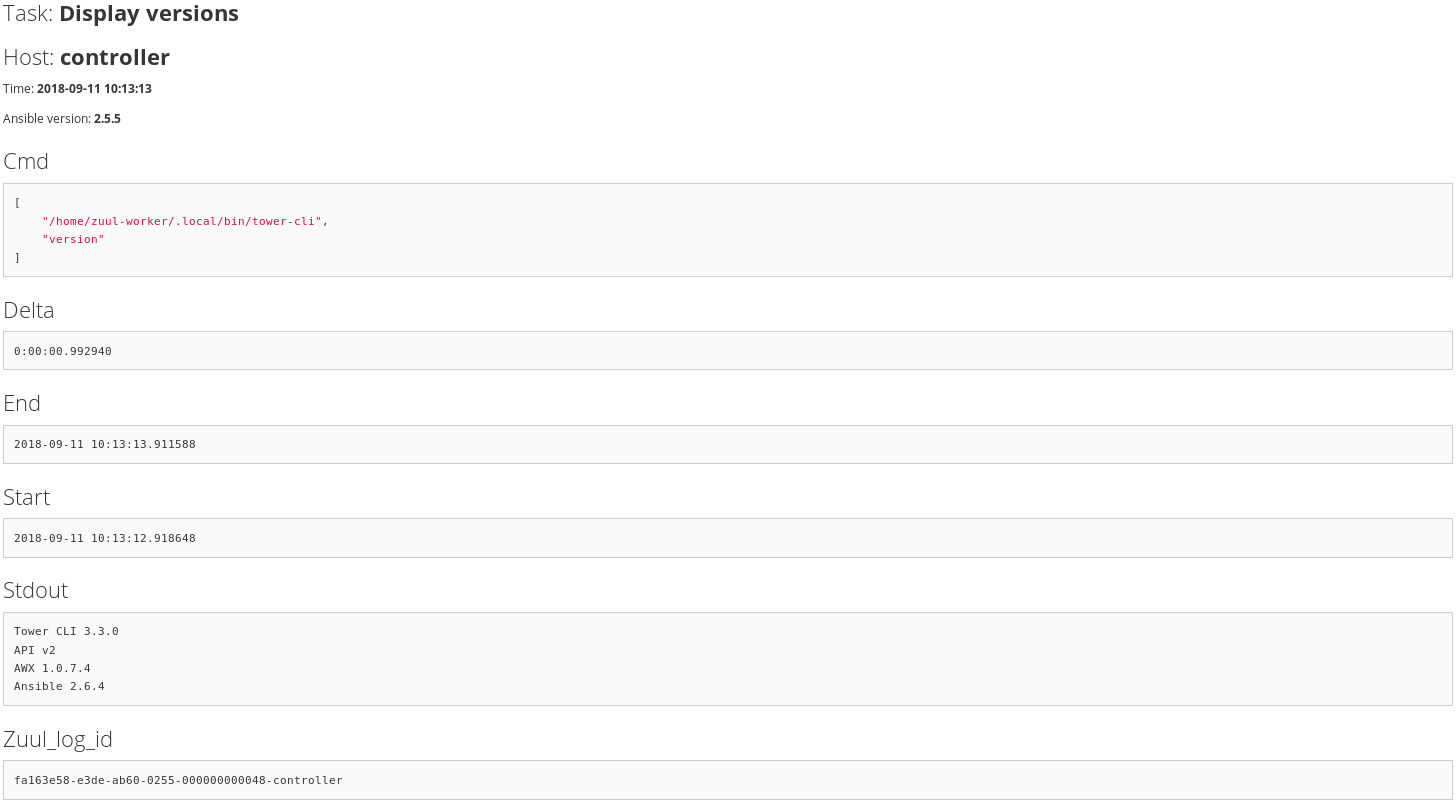

And here is a test task output:

None

Conclusion

Zuul can easily be used to run integration tests on OpenShift. Here are the Pull Requests containing the demonstration jobs:
