Software Factory Resources in Reason

Using bs-json and reason-react

The first step was to create data types to define the resources of Software Factory.

For example, we defined a Tenant as:

type tenant = {
  name: string,
  default_connection: option(string),
  description: option(string),
  url: string
}

And using the bs-json library we wrote a function to parse its JSON representation:

let parse = json => {
  name: json |> field("name", string),
  default_connection: json |> optional(field("default-connection", string)),
  description: json |> optional(field("description", string)),
  url: json |> field("url", string)
}

We also wrote interfaces to use the patternfly's components with reason-react:

module Card = {
  [@react.component] [@bs.module "@patternfly/react-core"]
  external make:
    (
      ~className: string=?,
      ~children: 'children=?
    ) => React.element = "Card"
}

The binding defines the property types and prevents runtime error when building the web UI.

Here is how we wrote a TenantCard component:

module TenantCard = {
  [@react.component]
  let make = (~tenant: SF.tenant) =>
    <Card key={tenant.name}>
      <CardTitle>
        <span> {tenant.name |> React.string} </span>
        <span> {" - " |> React.string} </span>
        <span>
          {Option.getWithDefault(
             tenant.description,
             "The " ++ tenant.name ++ " tenant",
           )
           |> React.string}
        </span>
      </CardTitle>
    </Card>
}

The model helped us be explicit with edge cases, for example, to show a tenant description, we had to take into account that the description may be missing.

This was promising, however the first implementation revealed issues with the resources model. It was initially designed as a flat structure where tenants, projects and repositories could be defined side by side. Here is an example project configuration:

resources:
  projects:
    RPMS:
      tenant: local
      description: RPMS Packages
      source-repositories:
        - rpms/libuv:
            zuul/include: []

Tenants and connections can be defined in an adjacent file:

resources:
  tenants:
    local:
      description: "The local tenant."
      url: "https://softwarefactory-project.io/manage"
      default-connection: gerrit
  connections:
    gerrit:
      base-url: "https://softwarefactory-project.io/r"
      type: gerrit

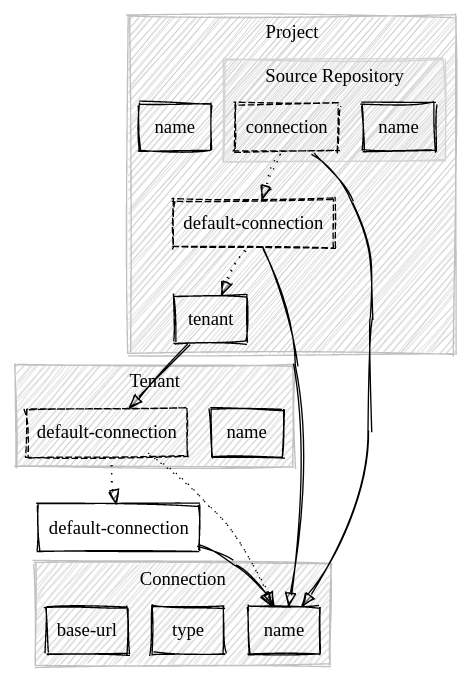

Thus, to display the url of the rpms/libuv repository of the RPMS project, multiple lookups need to be performed:

This is rather complex for our user, and in the following sprint, we designed better data types.

Refactoring

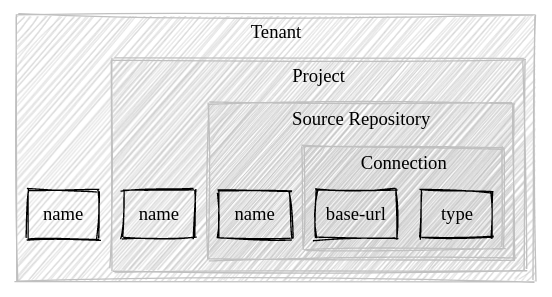

We decided to re-arrange the data types to avoid impossible states such as respository with no connections:

We used the decco library to automatically generate JSON encoder and decoder:

module Connection = {
  [@decco]
  type t =
    | Gerrit(string)
    | Pagure(string)
}

module SourceRepository = {
  [@decco]
  type t = {
    name: string,
    description: option(string),
    location: Connection.t,
  }
}

module Project = {
  [@decco]
  type t = {
    name: string,
    description: string,
    [@decco.key "source-repositories"]
    source_repositories: list(SourceRepository.t)
  }
}

module Tenant = {
  [@decco]
  type t = {
    name: string,
    projects: list(Project.t),
    description: option(string),
  }
}

Then we wrote a conversion function to process the legacy model into the new representation. For example, the connection information is now resolved once with this function:

let getConnection: (sr, project, tenant) =>
  SFV1.SourceRepository.getConnection(sr)
    ->Option.getWithDefault(
        project.connection
        ->Option.getWithDefault(
            tenant.default_connection
          )
      )

This was great because the new model doesn't require complicated lookup. For example, here is how the user interface was improved: https://softwarefactory-project.io/r/20002

Thanks to the typesystem, this major refactor went smoothly and we didn't have a single runtime error.

Cons

The IDE tooling could use more polish, for example the LSP server needs to be restarted at some point to pick up new changes.

The ecosystem is relatively young and the new syntax/brand named ReScript is confusing.

The decco library is implemented using PPX which can yield obscure errors.

Getting used to the type checker and IDE takes time.

Functional programing is very different from imperative-style programming and there is a lot to learn.

Pros

The ReScript compiler is extremely fast, and it can build a complete project in a few milliseconds.

Functional libraries are simple to use because the type definition documents most of the required information. This is an improvement over object oriented interface where how to use a foreign code base may not be obvious.

Refactoring and modifying the source code is safe because the type checker acts as an incredibly useful assistant. Afterall, source code is often modified, so any help is more than welcome.

Overall, the functional paradigm features "timeless" primitives that seems more portable than object oriented ones. The implementation we wrote is not specific to Reason and it may be re-written in any functional language. See this blog post for more details.
